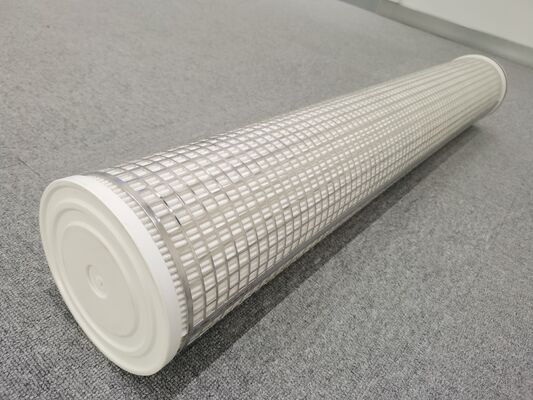

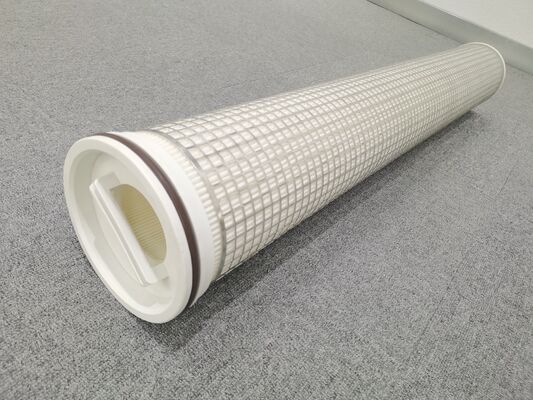

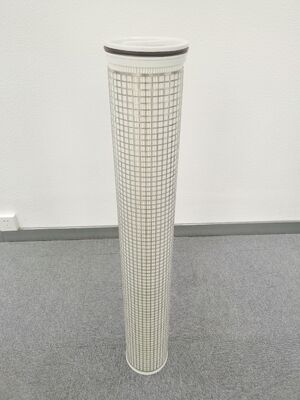

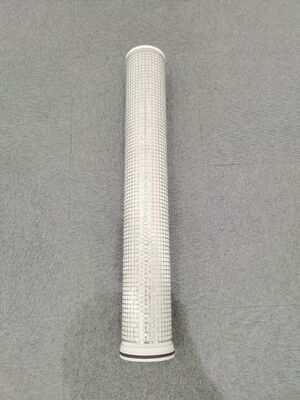

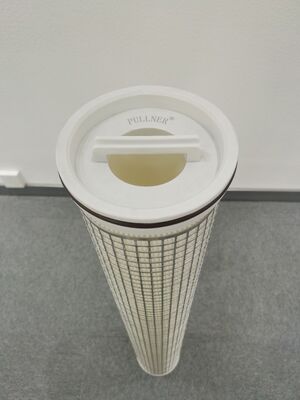

PHFLH 60-Inch High Temperature Flow Filter Cartridge
The PHFLH 60-inch high temperature flow filter cartridge is engineered for demanding water treatment and seawater desalination applications requiring high-flow hot water filtration in industrial and commercial processes.
Product Overview
This high-temperature water filter is designed for high-flow hot water filtration in demanding industrial and commercial processes. With maximum flow rates up to 70 m³/h (40") and 110 m³/h (60"), it supports stable operation in high-volume systems while maintaining reliable filtration performance.
Available in 20", 40", and 60" lengths with an outer diameter of 6" (6.5" optional), this filter is compatible with standard housings and skid-mounted filtration systems. Suggested differential pressure for replacement is 2.5 bar.
Certified to ISO9001, ISO14001, and ISO45001 standards, this product is manufactured under strict quality, environmental, and occupational health & safety management systems. Its robust construction and high-temperature resistance make it suitable for hot water processes where conventional cartridges may deform or lose efficiency.
Key Features
- Designed for high-temperature hot water filtration
- High flow capacity: 70 m³/h (40"), 110 m³/h (60")
- Multiple length options: 20" / 40" / 60"
- Standard 6" OD (6.5" optional) for broad housing compatibility
- Suggested replacement pressure: 2.5 bar
- Certified management systems: ISO9001 / ISO14001 / ISO45001
- Easy installation and maintenance for efficient operation
Technical Parameters
| Product Name |
High-Temperature Water Filter |
| Brand |
Pullner |
| Length |
20", 40", 60" |
| Outer Diameter (OD) |
6" (6.5" optional) |
| Max. Flow Rate |
40" - 70 m³/h; 60" - 110 m³/h |
| Filtration Area |
7 m² (per 40") |
| Suggested ΔP for Replacement |
2.5 bar |
| Certifications |
ISO9001, ISO14001, ISO45001 |
Applications
The High-Temperature Water Filter is widely used in industries requiring hot water sterilization, high-flow filtration, and stable operation under elevated temperature:
- Food & Beverage: hot water sterilization to reduce bacterial contamination risk
- Pharmaceutical: process water filtration to improve product consistency
- Oil & Gas: hot water filtration for drilling and utility water processes
- Chemical Processing: filtration of process water in high-temperature operations
- Industrial Manufacturing: power generation, steel production, automotive manufacturing, and other high-demand processes
Support & Services
We provide technical support for installation, operation, and maintenance, as well as routine services such as filter replacement guidance and maintenance recommendations. Comprehensive documentation is available, including user manuals, installation guides, and troubleshooting notes.
Company Profile
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of RMB 26 million. The company operates a Class 100,000 cleanroom workshop (3,000 m²) and an on-site Class 1,000 clean laboratory, integrating R&D, manufacturing, and sales of microporous membrane filtration equipment and filtration systems.
Pullner products are widely applied in microelectronics, fine chemicals, new energy, seawater desalination, biotech, and laboratory fields, including LCD panels, semiconductor processing, high-purity chemicals, condensate filtration, and reclaimed water reuse.
The company holds ISO9001 / ISO14001 / ISO45001 certificates, is recognized as a high-tech enterprise, and owns multiple patents. Pullner is also an approved vendor of Saudi Aramco.
Frequently Asked Questions
Who is the manufacturer and brand?
Manufacturer: Shanghai Pullner Filtration Technology Co., Ltd. / Brand: Pullner.
Can you provide samples?
Yes. We can provide 1-2 free samples for evaluation. Buyers only cover shipping. (Free samples are typically supported for future formal orders.)
What is the delivery time?
Usually 5-10 working days, depending on order quantity.
Is the filtration rating nominal or absolute?
Standard products are nominal. Absolute-rated filters can be customized based on your application.
Which brands can your filters replace?
Compatible replacements include major brands such as PALL, 3M, PARKER, and others.
What is the MOQ?
Standard MOQ is 1 piece (factory direct). For certain models or customized specs, MOQ may vary.
Manufacture Workshop
Pullner Laboratory
