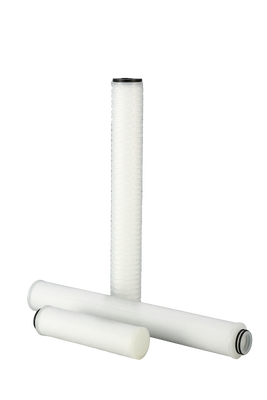

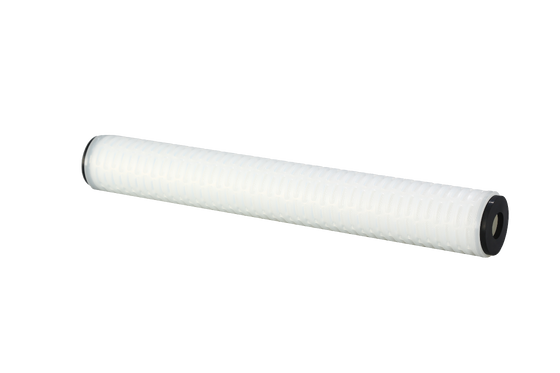

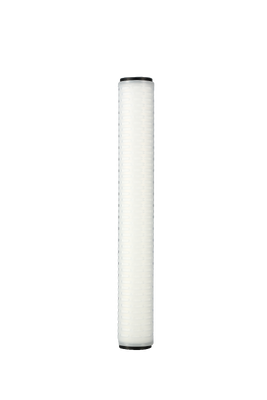

PLPV / PLPVH Series Corrosion Resistant PVDF Filter Cartridge
PLPV / PLPVH Series corrosion resistant PVDF filter cartridge is designed for strong corrosive chemical filtration and high-temperature chemical liquid filtration. This series uses PTFE membrane as the filter media, with PVDF outer cage, center core and end caps. The PVDF structural components provide excellent chemical resistance and high temperature resistance, while the PTFE membrane delivers high filtration efficiency and reliable particle retention.
PLPV Series adopts hydrophobic PTFE membrane, suitable for strong corrosive acids, alkalis, organic solvents, and special chemical filtration. PLPVH Series uses hydrophilic PTFE membrane, which can directly filter aqueous solutions without pre-wetting. It is especially suitable for filtration of hydrofluoric acid, nitric acid, sulfuric acid, hydrochloric acid, other strong corrosive liquids, and organic solvents.
Key Features
- Excellent Corrosion Resistance: PVDF cage, core and end caps provide strong resistance to corrosive chemicals, making the cartridge suitable for harsh chemical filtration environments.
- Optional Hydrophilic PTFE Membrane: PLPVH Series uses hydrophilic PTFE membrane and can directly filter aqueous solutions without pre-wetting, helping simplify operation and improve process efficiency.
- High Temperature Resistance: The PVDF structure provides better high-temperature resistance than ordinary PP structure, with maximum operating temperature up to 130°C.
- High Filtration Efficiency: PTFE membrane provides high filtration efficiency and absolute-rated particle retention, helping remove fine impurity particles from corrosive chemical liquids.
- 100% Integrity Test Before Delivery: Each cartridge is integrity tested before shipment to ensure reliable sealing performance and stable filtration efficiency.
Technical Specifications
| Item |
Specification |
| Product Series |
PLPV / PLPVH Series |
| Product Type |
Corrosion Resistant PVDF Filter Cartridge |
| Filter Media |
PLPV: Hydrophobic PTFE membrane；PLPVH: Hydrophilic PTFE membrane |
| Cage / Core / End Caps |
PVDF |
| Main Application |
Strong acid, alkali and organic solvent filtration |
| Maximum Operating Temperature |
130°C |
| Maximum Operating Differential Pressure |
4 bar @ 21°C；2.4 bar @ 80°C；1.4 bar @ 130°C |
| Membrane Options |
Hydrophobic PTFE / Hydrophilic PTFE |
| Quality Control |
100% integrity test before delivery |
| Customization |
Micron rating, length, end cap type, sealing material and connection type can be customized |
Ordering Information
| Series |
Micron |
Length |
End Cap Type |
Seal Material |
PLPV
PLPVH |
0002=0.02μm
0005=0.02μm
0010=0.1μm
0020=0.2um
0050=0.5μm
0100=1.0μm
0300=3.0μm
0500=5.0μm
1000=10μm |
05=5"
10=10"
20=20" |
C5=222/Flat |
P=FEP
PN=F-FKM |
Recommended Industries
| Industry |
Application |
| Semiconductor |
Etching liquid, stripping liquid, high-purity chemical filtration |
| Electronics |
Process chemical filtration, precision liquid filtration |
| Chemical Processing |
Strong acid, alkali, solvent and oxidizing liquid filtration |
| Industrial Manufacturing |
Corrosive liquid pre-filtration and final filtration |
| High-Purity Liquid Processing |
Fine particle removal and process protection |
Product Advantages
Compared with ordinary PP filter cartridges, PLPV / PLPVH Series uses PVDF structural components, giving it stronger chemical resistance and better high-temperature performance.
The PTFE membrane provides excellent filtration accuracy and chemical compatibility, making the cartridge suitable for demanding corrosive chemical applications.
For aqueous corrosive liquids, PLPVH hydrophilic PTFE membrane can be used directly without pre-wetting. For strong solvents and highly corrosive chemical conditions, PLPV hydrophobic PTFE membrane provides stable and reliable filtration performance.
Support & Services
We provide comprehensive technical support for installation, operation, and maintenance, including filter replacement guidance and maintenance recommendations. Complete documentation includes user manuals, installation guides, and troubleshooting notes.
Company Profile
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of RMB 26 million. The company operates a Class 100,000 cleanroom workshop (3,000 m²) and an on-site Class 1,000 clean laboratory, integrating R&D, manufacturing, and sales of microporous membrane filtration equipment and filtration systems.
Pullner products are widely applied in microelectronics, fine chemicals, new energy, seawater desalination, biotech, and laboratory fields, including LCD panels, semiconductor processing, high-purity chemicals, condensate filtration, and reclaimed water reuse.
The company holds ISO9001 / ISO14001 / ISO45001 certificates, is recognized as a high-tech enterprise, and owns multiple patents. Pullner is also an approved vendor of Saudi Aramco.
Frequently Asked Questions
Q1: Who is the manufacturer and brand?
A1: Manufacturer: Shanghai Pullner Filtration Technology Co., Ltd. / Brand: Pullner.
Q2: Can you provide samples?
A2: Yes. We can provide 1-2 free samples for evaluation. Buyers only cover shipping. (Free samples are typically supported for future formal orders.)
Q3: What is the delivery time?
A3: Usually 5-10 working days, depending on order quantity.
Q4: Is the filtration rating nominal or absolute?
A4: Standard products are nominal. Absolute-rated filters can be customized based on your application.
Q5: Which brands can your filters replace?
A5: Compatible replacements include major brands such as PALL, 3M, PARKER, and others.
Q6: What is the MOQ?
A6: Standard MOQ is 1 piece (factory direct). For certain models or customized specs, MOQ may vary.
