उत्पाद विवरण:
|
| प्रमुखता देना: | PTFE Membrane Filter Cartridge,high-precision filtration of corrosive chemicals oxidizing liquids,100% Integrity Inspection Before Delivery |
||
|---|---|---|---|

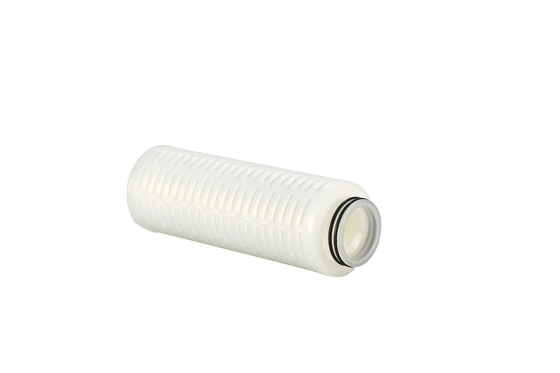

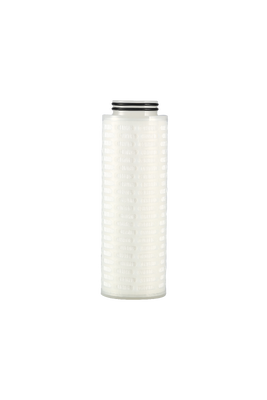

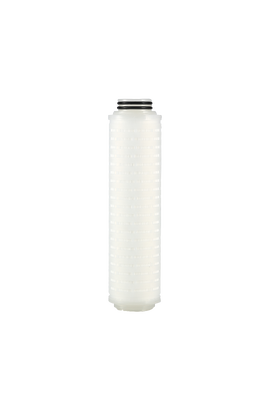

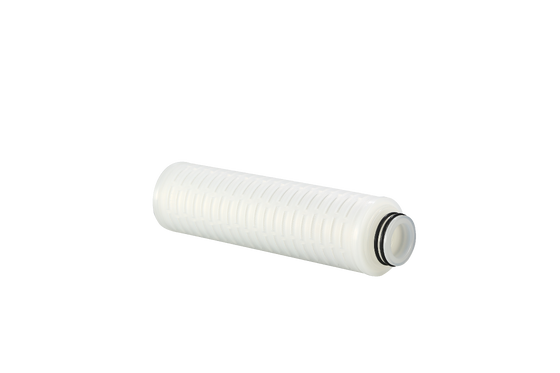

PLPT / PLPTH Series PTFE membrane filter cartridges are engineered for high-precision filtration of corrosive chemicals, oxidizing liquids, etching solutions, stripping liquids, and other demanding process fluids.
The PLPT series utilizes naturally hydrophobic PTFE membrane, delivering exceptional chemical resistance, corrosion resistance, and stable filtration performance in strong corrosive liquid applications.
The PLPTH series employs modified hydrophilic PTFE membrane, enabling direct liquid filtration without pre-wetting treatment. This reduces operation time, simplifies filtration procedures, and enhances process efficiency.
With high particle retention efficiency, extensive chemical compatibility, and multiple micron rating options, this series is ideal for chemical processing, semiconductor manufacturing, electronics, and high-purity liquid filtration applications.
| Item | Specification |
|---|---|
| Product Series | PLPT / PLPTH Series |
| Filter Media | PLPT: Hydrophobic PTFE membrane; PLPTH: Hydrophilic PTFE membrane |
| Cage / Core / End Caps | PP / PBT |
| Micron Rating | 0.01 μm - 10 μm |
| Maximum Operating Temperature | 70°C / 120°C |
| Maximum Operating Differential Pressure | 4 bar @ 21°C; 2.4 bar @ 70°C |
| Filtration Efficiency | Up to 99.99% particle interception efficiency |
| Inspection | 100% integrity inspection before delivery |
| Customization | Micron rating, length, end cap type, sealing material and connection type can be customized |
| Component | Specification |
|---|---|
| Filter Media | PTFE molded film |
| Cage/Core/End Caps | PFA, PTFE, PBT |
| Maximum Operating Temperature | 170℃ |
| Maximum Operating Differential Pressure | 4bar @50℃ 3bar @110℃ 1.7bar @170℃ |
| Parameter | Specification |
|---|---|
| Removal Rating | 0.03-1μm |
| Max. Operating Temperature | 170℃ |
| Series | Micron | Length | End Cap Type | Seal Material | |
|---|---|---|---|---|---|
| PLPT PLPTH | 0001=0.01μm | 0050=0.5μm | 05=5" | C5=222/Flat | E=EPDM |
| 0002=0.02μm | 0100=1.0μm | 10=10" | C6=226/Flat | P=FEP | |
| 0005=0.05μm | 0300=3.0μm | 20=20" | C9=DOE | V=FKM | |
| 0010=0.1μm | 0500=5.0μm | 30=30" | PN=F-FKM | ||
| 0020=0.2μm | 1000=10μm | 40=40" |
| Industry | Application |
|---|---|
| Semiconductor | Etching liquid, stripping liquid, high-purity chemical filtration |
| Electronics | Process chemical filtration, precision liquid filtration |
| Chemical Processing | Strong acid, alkali, solvent and oxidizing liquid filtration |
| Industrial Manufacturing | Corrosive liquid pre-filtration and final filtration |
| High-Purity Liquid Processing | Fine particle removal and process protection |
We provide comprehensive technical support for installation, operation, and maintenance, including filter replacement guidance and maintenance recommendations. Complete documentation includes user manuals, installation guides, and troubleshooting notes.
Shanghai Pullner Filtration Technology Co., Ltd. was established in May 2011 with a registered capital of RMB 26 million. The company operates a Class 100,000 cleanroom workshop (3,000 m²) and an on-site Class 1,000 clean laboratory, integrating R&D, manufacturing, and sales of microporous membrane filtration equipment and filtration systems.
Pullner products are widely applied in microelectronics, fine chemicals, new energy, seawater desalination, biotech, and laboratory fields, including LCD panels, semiconductor processing, high-purity chemicals, condensate filtration, and reclaimed water reuse.
The company holds ISO9001 / ISO14001 / ISO45001 certificates, is recognized as a high-tech enterprise, and owns multiple patents. Pullner is also an approved vendor of Saudi Aramco.
